KCPL160-V-06A / KCPL200-V-06A
KCPL260-V-06A

Inquiry
KCPL160-V-06A
Ultimate Degree of Vacuum
to 44 kPa
Motor Output
to 6.6 kW
Maximum Flow Rate
to 305 m3/h
Inquiry

Features

Can achieve a degree of vacuum higher than typical side channel blowers thanks to its single cylinder two-stage construction.

Two-Stage Air Flow
IE3 Different Voltage Standard Targeted ItemIE3-target high efficiency motor with a 200 to 400 V voltage range.
※ Please contact us regarding UL qualification.
Complete Freedom of Installation Location/ArrangementCan choose horizontal or vertical applications and installation locations.
Integrated Safety Valve ConstructionWe've adopted an all-in-one design based upon the main body of the product

Specifications

The flow rate is a theoretical value based on the designed pumping capacity. See the Power Graphs for the actual flow rate.

Pressures indicated are when operating the pump under 1 ATM. (Correction required depending on installed elevation.)

Operating noise is measured at 25 kPa, and is not a guaranteed value.

The allowable voltage fluctuation is ±10% of the rated voltage.

Please consult ORION regarding operation at altitudes higher than 800 m.

External Diagram (Units: mm)

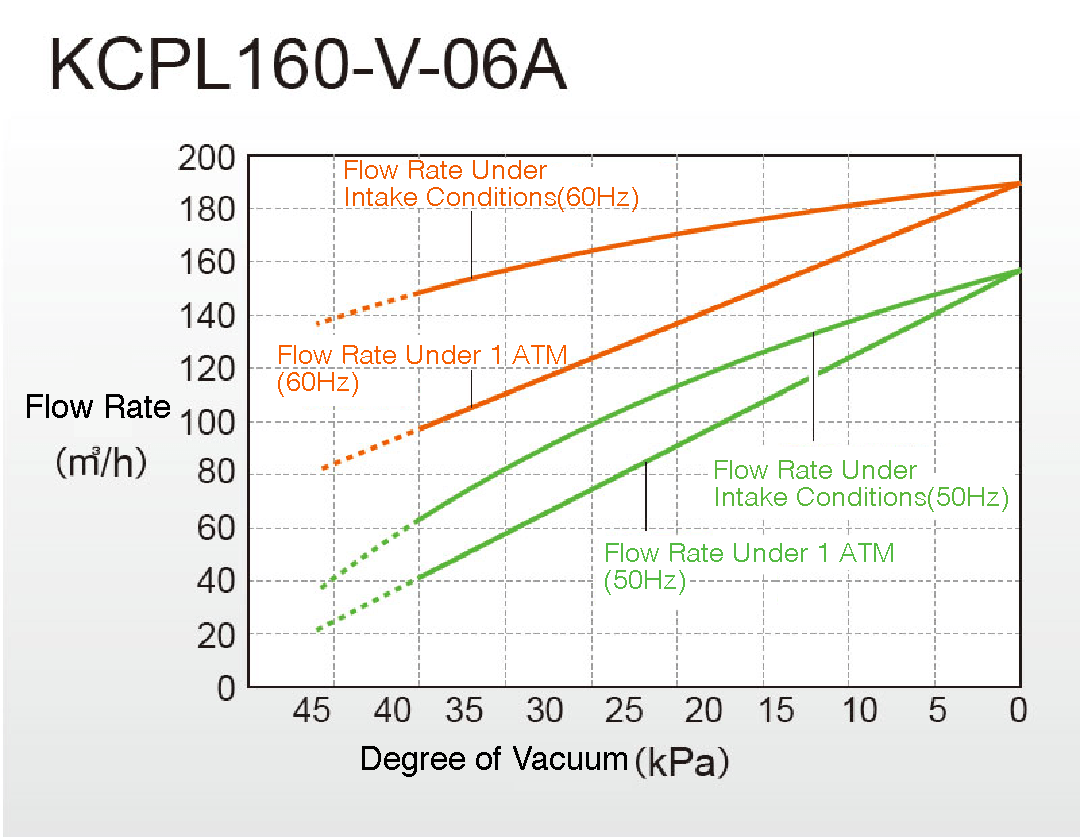

Power Graph

KCPL160-V-06A
KCPL200-V-06A
KCPL260-V-06A

Accessories

Note 1 :
In order to remove foreign matter, always install and operate an intake filter (one of the available accessories) with the Side Channel Blower.
Failure to operate with an intake filter can lead to trouble from particulate clogging within the close tolerance internal parts of the product.
Note 2 :
The above-mentioned intake filter, air muffler and other products are general-purpose items that can work with other devices and will require a bushing or other part to adapt to the required connection diameter. Please contact us for details.

Documentation is available for download.
